VSB Finishing Ball Nose Insert

boring-end-mill

Indexable ball nose cutter series for high-hardness mold machining.
High-precision insert clamping improves repeatability and surface finish quality.
S-shaped cutting geometry reduces vibration during profiling applications.
AHX nano multilayer coating supports machining applications up to 70 HRC.

vsb finishing ball nose insert.png

VSB Finishing Ball Nose Insert

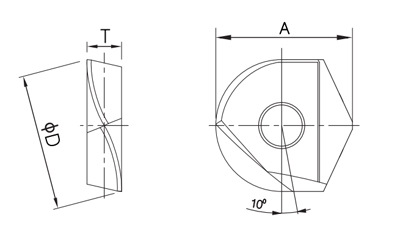

Specification List of VSB

Unit:mm

VSB Finishing Ball Nose Insert

Type No.Size
DRAT
VSB160-BS-R 9105-B16816.64.2
VSB200-BS-R 9105-B201020.25.2
VSB250-BS-R 9105-B2512.524.36.2
VSB300-BS-R 9105-B301529.27.2


SBPF Finishing Ball Nose Holder

Type No.DdLMNo. InsertInsertScrewWrench
SBPF16-M08168.528M081VSB160ZP16TK15
SBPF20-M102010.530M101VSB200ZP20TK20
SBPF25-M122512.540M121VSB250ZP25TK30
SBPF30-M16301741M161VSB300ZP30TK30


WorkpiecePre-Hardened Steels
(<45HRC)
Hardened Steels
(45-55HRC)
Hardened Steels
(55-65HRC)
Type No.Spindle speedFeedapaeSpindle speedFeedapaeSpindle speedFeedapae
VSB160-BS-R 9105-B6000-100006000-100000.05-0.10.25500-60002500-30000.05-0.10.25500-60002500-30000.05-0.10.2
VSB200-BS-R 9105-B6000-100006000-100000.05-0.120.255500-60003000-36000.05-0.120.255500-60003000-36000.05-0.120.25
VSB250-BS-R 9105-B6000-80006000-80000.05-0.120.255000-55003000-45000.05-0.120.255000-55003000-45000.05-0.120.25
VSB300-BS-R 9105-B5000-80005000-80000.05-0.20.34500-50003000-60000.05-0.20.34500-50003000-60000.05-0.20.3
