MSB Finishing Ball Nose Insert

Indexable ball nose cutter series for stable profiling and mold finishing.
Ultra-fine carbide inserts provide excellent wear resistance and edge stability.
Precision insert clamping system improves machining consistency and surface integrity.

msb finishing ball nose insert.png


MSB Finishing Ball Nose Insert

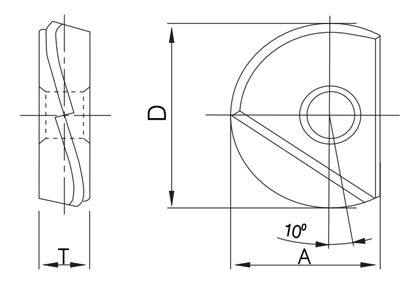

Specification List of MSB

Unit:mm

MSB Finishing Ball Nose Insert

Type No.Size
DRAT
MSB120-S-R 9105-B126103
MSB160-S-R 9105-B168124
MSB200-S-R 9105-B2010155
MSB250-S-R 9105-B2512.518.56
MSB300-S-R 9105-B301522.5

7


SPH Finishing Ball Nose Holder

Type No.DdLMNo. InsertInsertScrewWrench
SPH10-M05106.520M51MSB100NS-033T8
SPH12-M06126.522M61MSB120NS-044T10
SPH16-M08168.528M81MSB160NS-046T15

MSB Finishing Ball Nose Insert

WorkpiecePre-Hardened Steels
(<45HRC)
Hardened Steels
(45-55HRC)
Hardened Steels
(55-65HRC)
Type No.Spindle speedFeedapaeSpindle speedFeedapaeSpindle speedFeedapae
MSB120-S-R 9105-B8000-100002500-50000.05-0.10.26000-65002500-30000.05-0.10.26000-65002500-30000.05-0.10.2
MSB160-S-R 9105-B6000-100006000-100000.05-0.10.25500-60002500-30000.05-0.10.25500-60002500-30000.05-0.10.2
MSB200-S-R 9105-B6000-100006000-100000.05-0.120.255500-60003000-36000.05-0.120.255500-60003000-36000.05-0.120.25
MSB250-S-R 9105-B6000-80006000-80000.05-0.120.255000-55003000-45000.05-0.120.255000-55003000-45000.05-0.120.25
MSB300-S-R 9105-B5000-80005000-80000.05-0.20.34500-50003000-60000.05-0.20.34500-50003000-60000.05-0.20.3
