HGHFE4-5D-CR 4-Flute HPC Corner Radius 5D End Mill

HGHFE4-5D-CR 4-Flute HPC Corner Radius 5D End Mill

Variable-pitch roughing end mill for high-efficiency steel machining.
Unequal flute spacing reduces vibration during aggressive cutting conditions.
Optimized gash geometry improves chip evacuation in slotting and side milling operations.
AlCr/TiSi-based coating ensures stable wear resistance in steel and stainless steel machining.

hghfe4 5d CR 4-flut HPC corner radius 5d end mill.png


HGHFE4-5D-CR 4-Flute HPC Corner Radius 5D End Mill

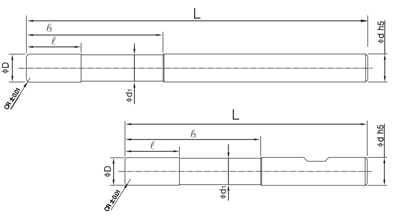

Specification List of HGHFE4-5D-CR

Unit:mm
Type No.Dia.Length  of  CutUnder  Neck  LengthNeck  Dia.Neck  Taper  AngleOverall LengthShank  Dia.Shank
HGHFE4010-5 065011.850.9520506Cylinder Shank
HGHFE4020-10 065023.6101.920506Cylinder Shank
HGHFE4030-15 066035.4152.920606Cylinder Shank
HGHFE4040-20 066047.2203.820606Cylinder Shank
HGHFE4050-25 067559254.720756Cylinder Shank
HGHFE4060-30 0675610.8305.6-756Cylinder Shank
HGHFE4080-40 08100814.4407.6-1008Cylinder Shank
HGHFE4100-50 101001018509.5-10010Cylinder Shank
HGHFE4120-60 12107-W1221.66011.5-10712Weldon Shank
HGHFE4160-80 16130-W1628.88015.5-13016Weldon Shank
HGHFE4200-100 20152-W203610019.5-15220Weldon Shank
