SGSO Technology Europe GmbH

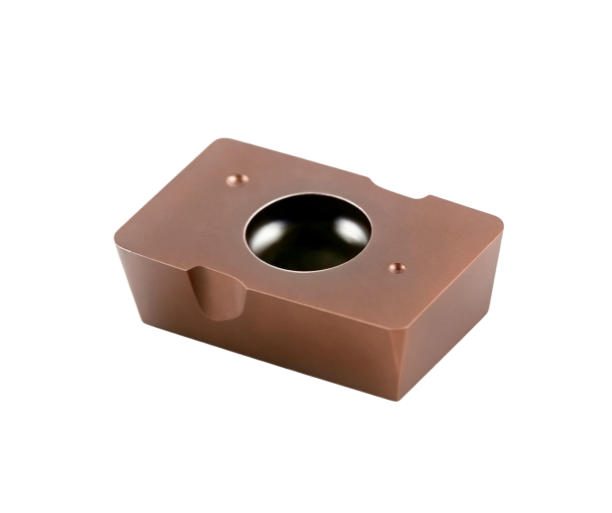

MPGW Finishing Square Insert


High-precision Side-bottom Finishing Insert

  • Six-side precision ground. Tolerance: H-class.

  • Peripheral and bottom edges for finishing. Equal height on periphery. Bottom edge for parallel & plunge milling.

  • With rigid setup, wiper insert improves feed, surface finish, and brightness.

  • With carbide shank and threaded head: Achieves precision within 0.02mm.

    Cost-effective alternative to large solid carbide end mills.

mpgw finishing square inserts

MPGW Finishing Square Insert

Specification List of MPGW

Unit:mm

MPGW Side-Bottom Finishing Insert


Type No.BRWhlWiper (W)
MPGW100308 FP-91106.350.81.53-Yes
MPGW100308 MP-91106.350.8--3No

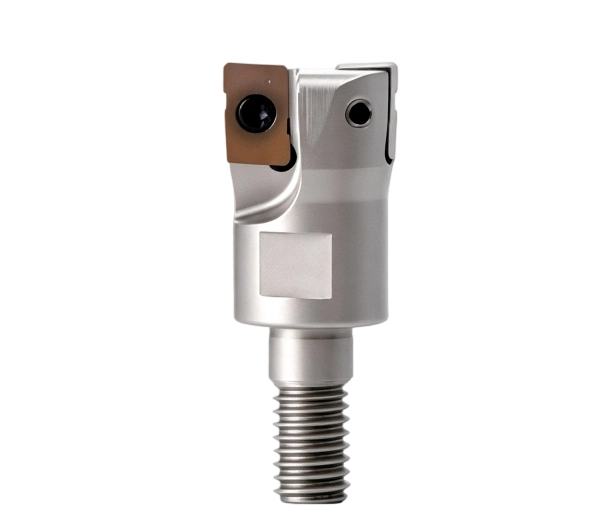

SPVM Side-Bottom Finishing Holder

Type No.DdLMNo. InsertInsertScrewWrench
SPVM16-M08-2T168.525M82MPGW1003TS2506TK08
SPVM20-M10-2T2010.530M102MPGW1003TS2506TK08
SPVM20-M10-3T2010.530M103MPGW1003TS2506TK08
SPVM25-M12-3T2512.535M123MPGW1003TS2506TK08
SPVM25-M12-4T2512.535M124MPGW1003TS2506TK08
