HSXRT 4-Flute Power Corner Radius End Mill
1、0.3um ultra fine particles, makes it super wear resistance.
2、AHX coating is a composite multilayer coating base on TiSiN, through special deposition process, the bottom of coating has strong combining ability with the Cemented carbide matrix.And the function layer has compact structure.Compared with the HX coating,the ability of high temperature resistance and wear resistance of AHX coating is significantlly improved.lt's suitable for micro lubrication cutting.
3、lt's suitable for the chilled steels (HRC55-65) and high alloy materials etc.
Key words: tool
Classification:
Product Details

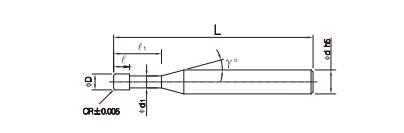

| Type No. | Dia. | Corner Radius | Length of Cut | Under Neck Length | Neck Dia. | Nack Taper Angle | Overall Length | Shank Dia. |
| HSXRT4030R0.5 0650 | 3 | R0.5 | 1.2 | 9 | 2.8 | 11 | 50 | 6 |
| HSXRT4030R0.5 0675 | 3 | R0.5 | 1.2 | 9 | 2.8 | 11 | 75 | 6 |
| HSXRT4030R1.0 0650 | 3 | R1.0 | 1.2 | 9 | 2.8 | 11 | 50 | 6 |
| HSXRT4030R1.0 0675 | 3 | R1.0 | 1.2 | 9 | 2.8 | 11 | 75 | 6 |
| HSXRT4040R0.5 0650 | 4 | R0.5 | 1.6 | 12 | 3.8 | 11 | 50 | 6 |
| HSXRT4040R0.5 0675 | 4 | R0.5 | 1.6 | 12 | 3.8 | 11 | 75 | 6 |
| HSXRT4040R1.0 0650 | 4 | R1.0 | 1.6 | 12 | 3.8 | 11 | 50 | 6 |
| HSXRT4040R1.0 0675 | 4 | R1.0 | 1.6 | 12 | 3.8 | 11 | 75 | 6 |
| HSXRT4050R1.0 0650 | 5 | R1.0 | 2 | 15 | 4.7 | 11 | 50 | 6 |
| HSXRT4050R1.0 0675 | 5 | R1.0 | 2 | 15 | 4.7 | 11 | 75 | 6 |
| HSXRT4060R1.0 0650 | 6 | R1.0 | 2.5 | 18 | 5.6 | - | 50 | 6 |
| HSXRT4060R1.0 0675 | 6 | R1.0 | 2.5 | 18 | 5.6 | - | 75 | 6 |
| HSXRT4060R1.5 0650 | 6 | R1.5 | 2.5 | 18 | 5.6 | - | 50 | 6 |
| HSXRT4060R1.5 0675 | 6 | R1.5 | 2.5 | 18 | 5.6 | - | 75 | 6 |
| HSXRT4080R1.0 0875 | 8 | R1.0 | 3.5 | 24 | 7.6 | - | 75 | 8 |
| HSXRT4080R1.0 08100 | 8 | R1.0 | 3.5 | 24 | 7.6 | - | 100 | 8 |
| HSXRT4080R2.0 0875 | 8 | R2.0 | 3.5 | 24 | 7.6 | - | 75 | 8 |
| HSXRT4080R2.0 08100 | 8 | R2.0 | 3.5 | 24 | 7.6 | - | 100 | 8 |
| HSXRT4100R1.0 1075 | 10 | R1.0 | 4 | 30 | 9.5 | - | 75 | 10 |
| HSXRT4100R1.0 10100 | 10 | R1.0 | 4 | 30 | 9.5 | - | 100 | 10 |
| HSXRT4100R2.0 1075 | 10 | R2.0 | 4 | 30 | 9.5 | - | 75 | 10 |
| HSXRT4100R2.0 10100 | 10 | R2.0 | 4 | 30 | 9.5 | - | 100 | 10 |
| HSXRT4120R2.0 1275 | 12 | R2.0 | 5 | 36 | 11.5 | - | 75 | 12 |
| HSXRT4120R2.0 12100 | 12 | R2.0 | 5 | 36 | 11.5 | - | 100 | 12 |
| HSXRT4120R3.0 1275 | 12 | R3.0 | 5 | 36 | 11.5 | - | 75 | 12 |
| HSXRT4120R3.0 12100 | 12 | R3.0 | 5 | 36 | 11.5 | - | 100 | 12 |
