HGXB 2-Flute Ball End Mill

1、0.3um ultra fine particles, makes it have both to-ughness and hardness, high speed and long time cutting could be true. 2、The super lubrication of ATX coating surface,makes the friction coefficient of the coating surface lower,cutting resistance and cutting temperature will be greatly reduced; 3、ATX coating is very suitable for cutting the materials of HRC40-55,widely used to the processing of high-precision moulds such as car lamp moulds, mobile phone moulds and hardware moulds, etc.

Key words: tool

Classification:

HGXB2

Online message

Product Details

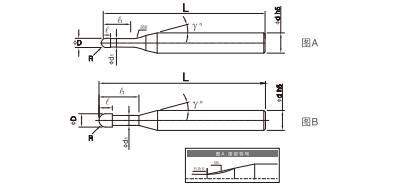

Type No.	Radius	Under Neck Length	Length of Cut	Dia.	Neck Dia.	Neck Taper Angle	Overall Length	Shank Dia.
HGXB2001 0450	R0.05	-	0.1	0.1	-	12	50	4
HGXB20015 0450	R0.075	-	0.15	0.15	-	12	50	4
HGXB2002 0450	R0.1	-	0.2	0.2	-	12	50	4
HGXB2003 0450	R0.15	-	0.3	0.3	-	12	50	4
HGXB2004 0450	R0.2	-	0.6	0.4	-	12	50	4
HGXB2005 0450	R0.25	-	0.8	0.5	-	12	50	4
HGXB2006 0450	R0.3	-	0.9	0.6	-	12	50	4
HGXB2008 0450	R0.4	-	1.2	0.8	-	12	50	4
HGXB2010 0450	R0.5	2	0.75	1	0.95	12	50	4
HGXB2010 0650	R0.5	2.5	0.75	1	0.95	12	50	6
HGXB2010 0660	R0.5	2.5	0.75	1	0.95	12	60	6
HGXB2010 0675	R0.5	2.5	0.75	1	0.95	12	75	6
HGXB2010 06100	R0.5	2.5	0.75	1	0.95	12	100	6
HGXB2012 0450	R0.6	2.4	0.9	1.2	1.14	11	50	4
HGXB2015 0450	R0.75	3	1.2	1.5	1.42	11	50	4
HGXB2015 0650	R0.75	4	1.2	1.5	1.42	11	50	6
HGXB2015 0660	R0.75	4	1.2	1.5	1.42	11	60	6
HGXB2015 0675	R0.75	4	1.2	1.5	1.42	11	75	6
HGXB2015 06100	R0.75	4	1.2	1.5	1.42	11	100	6
HGXB2020 0450	R1	4	1.6	2	1.9	11	50	4
HGXB2020 0650	R1	6	1.6	2	1.9	11	50	6
HGXB2020 0660	R1	6	1.6	2	1.9	11	60	6
HGXB2020 0675	R1	6	1.6	2	1.9	11	75	6
HGXB2020 06100	R1	6	1.6	2	1.9	11	100	6
HGXB2025 0450	R1.25	5	2	2.5	2.4	11	50	4
HGXB2025 0650	R1.25	7	2	2.5	2.4	11	50	6
HGXB2025 0660	R1.25	7	2	2.5	2.4	11	60	6
HGXB2025 0675	R1.25	7	2	2.5	2.4	11	75	6
HGXB2025 06100	R1.25	7	2	2.5	2.4	11	100	6
HGXB2030 0450	R1.5	6	2.4	3	2.9	11	50	4
HGXB2030 0650	R1.5	8	2.4	3	2.9	11	50	6
HGXB2030 0660	R1.5	8	2.4	3	2.9	11	60	6
HGXB2030 0675	R1.5	8	2.4	3	2.9	11	75	6
HGXB2030 06100	R1.5	8	2.4	3	2.9	11	100	6
HGXB2040 0450	R2	-	6	4	-	-	50	4
HGXB2040 0475	R2	-	6	4	-	-	75	4
HGXB2040 0650	R2	10	3.2	4	3.9	11	50	6
HGXB2040 0660	R2	10	3.2	4	3.9	11	60	6
HGXB2040 0675	R2	10	3.2	4	3.9	11	75	6
HGXB2040 06100	R2	10	3.2	4	3.9	11	100	6
HGXB2050 0650	R2.5	12	4	5	4.85	11	50	6
HGXB2050 0660	R2.5	12	4	5	4.85	11	60	6
HGXB2050 0675	R2.5	12	4	5	4.85	11	75	6
HGXB2050 06100	R2.5	12	4	5	4.85	11	100	6
HGXB2060 0650	R3	–	9	6	–	–	50	6
HGXB2060 0660	R3	–	9	6	–	–	60	6
HGXB2060 0675	R3	–	9	6	–	–	75	6
HGXB2060 06100	R3	–	9	6	–	–	100	6
HGXB2080 0860	R4	–	12	8	–	–	60	8
HGXB2080 0875	R4	–	12	8	–	–	75	8
HGXB2080 08100	R4	–	12	8	–	–	100	8
HGXB2080 08125	R4	–	12	8	–	–	125	8
HGXB2080 08150	R4	–	12	8	–	–	150	8
HGXB2100 1075	R5	–	15	10	–	–	75	10
HGXB2100 10100	R5	–	15	10	–	–	100	10
HGXB2100 10125	R5	–	15	10	–	–	125	10
HGXB2100 10150	R5	–	15	10	–	–	150	10
HGXB2120 1275	R6	–	18	12	–	–	75	12
HGXB2120 12100	R6	–	18	12	–	–	100	12
HGXB2120 12125	R6	–	18	12	–	–	125	12
HGXB2120 12150	R6	–	18	12	–	–	150	12
