HGXE 2-Flute End Mill
1、0.3um ultra fine particles, makes it have both to-ughness and hardness, high speed and long time cutting could be true.
2、The super lubrication of ATX coating surface,makes the friction coefficient of the coating surface lower,cutting resistance and cutting temperature will be greatly reduced;
3、ATX coating is very suitable for cutting the materials of HRC40-55,widely used to the processing of high-precision moulds such as car lamp moulds, mobile phone moulds and hardware moulds, etc.
Key words: tool
Classification:
Product Details

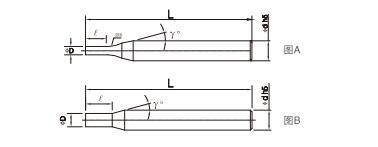

| Type No. | Dia. | Length of Cut | Neck Taper Angle | Overall Length | Shank Dia. |
| HGXE2001 0450 | 0.1 | 0.2 | 12 | 50 | 4 |
| HGXE20015 0450 | 0.15 | 0.3 | 12 | 50 | 4 |
| HGXE2002 0450 | 0.2 | 0.4 | 12 | 50 | 4 |
| HGXE2003 0450 | 0.3 | 0.6 | 12 | 50 | 4 |
| HGXE2004 0450 | 0.4 | 1.2 | 12 | 50 | 4 |
| HGXE2005 0450 | 0.5 | 1.5 | 12 | 50 | 4 |
| HGXE2006 0450 | 0.6 | 1.8 | 12 | 50 | 4 |
| HGXE2007 0450 | 0.7 | 2.1 | 12 | 50 | 4 |
| HGXE2008 0450 | 0.8 | 2.4 | 12 | 50 | 4 |
| HGXE2010 0450 | 1 | 3 | 12 | 50 | 4 |
| HGXE2010 0650 | 1 | 3 | 12 | 50 | 6 |
| HGXE2012 0450 | 1.2 | 3.5 | 11 | 50 | 4 |
| HGXE2014 0450 | 1.4 | 4 | 11 | 50 | 4 |
| HGXE2015 0450 | 1.5 | 4 | 11 | 50 | 4 |
| HGXE2015 0650 | 1.5 | 4 | 11 | 50 | 6 |
| HGXE2016 0450 | 1.6 | 4.5 | 11 | 50 | 4 |
| HGXE2020 0450 | 2 | 6 | 11 | 50 | 4 |
| HGXE2020 0650 | 2 | 6 | 11 | 50 | 6 |
| HGXE2025 0450 | 2.5 | 8 | 11 | 50 | 4 |
| HGXE2025 0650 | 2.5 | 8 | 11 | 50 | 6 |
| HGXE2030 0450 | 3 | 8 | 11 | 50 | 4 |
| HGXE2030 0650 | 3 | 8 | 11 | 50 | 6 |
| HGXE2030 0675 | 3 | 12 | 11 | 75 | 6 |
| HGXE2040 0450 | 4 | 11 | - | 50 | 4 |
| HGXE2040 0475 | 4 | 15 | - | 75 | 4 |
| HGXE2040 0650 | 4 | 11 | 11 | 50 | 6 |
| HGXE2040 0675 | 4 | 15 | 11 | 75 | 6 |
| HGXE2050 0650 | 5 | 13 | 11 | 50 | 6 |
| HGXE2050 0675 | 5 | 18 | 11 | 75 | 6 |
| HGXE2060 0650 | 6 | 16 | - | 50 | 6 |
| HGXE2060 0660 | 6 | 16 | - | 60 | 6 |
| HGXE2060 0675 | 6 | 20 | - | 75 | 6 |
| HGXE2060 06100 | 6 | 20 | - | 100 | 6 |
| HGXE2080 0860 | 8 | 20 | - | 60 | 8 |
| HGXE2080 0875 | 8 | 20 | - | 75 | 8 |
| HGXE2080 08100 | 8 | 25 | - | 100 | 8 |
| HGXE2100 1075 | 10 | 25 | - | 75 | 10 |
| HGXE2100 10100 | 10 | 30 | - | 100 | 10 |
| HGXE2120 1275 | 12 | 30 | - | 75 | 12 |
| HGXE2120 12100 | 12 | 35 | - | 100 | 12 |
| HGXE2140 1475 | 14 | 32 | - | 75 | 14 |
| HGXE2140 14100 | 14 | 40 | - | 100 | 14 |
| HGXE2160 16100 | 16 | 45 | - | 100 | 16 |
| HGXE2200 20100 | 20 | 45 | - | 100 | 20 |
