HGXE 4-Flute End Mill
1、0.3um ultra fine particles, makes it have both to-ughness and hardness, high speed and long time cutting could be true.
2、The super lubrication of ATX coating surface,makes the friction coefficient of the coating surface lower,cutting resistance and cutting temperature will be greatly reduced;
3、ATX coating is very suitable for cutting the materials of HRC40-55,widely used to the processing of high-precision moulds such as car lamp moulds, mobile phone moulds and hardware moulds, etc.
Key words: tool
Classification:
Product Details

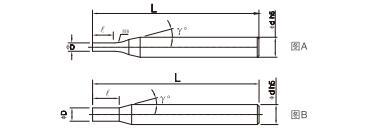

| Type No. | Dia. | Length of Cut | Nack Taper Angle | Overall Length | Shank Dia. |
| HGXE4008 0450 | 0.8 | 2.4 | 12 | 50 | 4 |
| HGXE4010 0450 | 1 | 3 | 12 | 50 | 4 |
| HGXE4010 0650 | 1 | 3 | 12 | 50 | 6 |
| HGXE4012 0450 | 1.2 | 3.5 | 11 | 50 | 4 |
| HGXE4014 0450 | 1.4 | 4 | 11 | 50 | 4 |
| HGXE4015 0450 | 1.5 | 4 | 11 | 50 | 4 |
| HGXE4015 0650 | 1.5 | 4 | 11 | 50 | 6 |
| HGXE4016 0450 | 1.6 | 5 | 11 | 50 | 4 |
| HGXE4020 0450 | 2 | 6 | 11 | 50 | 4 |
| HGXE4020 0650 | 2 | 6 | 11 | 50 | 6 |
| HGXE4025 0450 | 2.5 | 8 | 11 | 50 | 4 |
| HGXE4025 0650 | 2.5 | 8 | 11 | 50 | 6 |
| HGXE4030 0450 | 3 | 8 | 11 | 50 | 4 |
| HGXE4030 0650 | 3 | 8 | 11 | 50 | 6 |
| HGXE4030 0675 | 3 | 12 | 11 | 75 | 6 |
| HGXE4040 0450 | 4 | 11 | - | 50 | 4 |
| HGXE4040 0475 | 4 | 15 | - | 75 | 4 |
| HGXE4040 0650 | 4 | 11 | 11 | 50 | 6 |
| HGXE4040 0675 | 4 | 15 | 11 | 75 | 6 |
| HGXE4050 0650 | 5 | 13 | 11 | 50 | 6 |
| HGXE4050 0675 | 5 | 18 | 11 | 75 | 6 |
| HGXE4060 0650 | 6 | 16 | - | 50 | 6 |
| HGXE4060 0660 | 6 | 16 | - | 60 | 6 |
| HGXE4060 0675 | 6 | 20 | - | 75 | 6 |
| HGXE4060 06100 | 6 | 20 | - | 100 | 6 |
| HGXE4080 0860 | 8 | 20 | - | 60 | 8 |
| HGXE4080 0875 | 8 | 20 | - | 75 | 8 |
| HGXE4080 08100 | 8 | 25 | - | 100 | 8 |
| HGXE4100 1075 | 10 | 25 | - | 75 | 10 |
| HGXE4100 10100 | 10 | 30 | - | 100 | 10 |
| HGXE4120 1275 | 12 | 30 | - | 75 | 12 |
| HGXE4120 12100 | 12 | 35 | - | 100 | 12 |
| HGXE4140 1475 | 14 | 32 | - | 75 | 14 |
| HGXE4140 14100 | 14 | 40 | - | 100 | 14 |
| HGXE4160 16100 | 16 | 45 | - | 100 | 16 |
| HGXE4200 20100 | 20 | 45 | - | 100 | 20 |
| HGXE4200 20125 | 20 | 50 | - | 100 | 20 |
