HSXB2L 2-Flute Long Neck Ball End Mill
HSXB2L 2-Flute Long Neck Ball End Mill
HSXB2L 2-Flute Long Neck Ball End Mill
HSXB2L 2-Flute Long Neck Ball End Mill

HSXB2L 2-Flute Long Neck Ball End Mill

Key words: tool

Classification:

HSXB2L

Online message

Product Details

Specification List Cutting Codition DXF STP

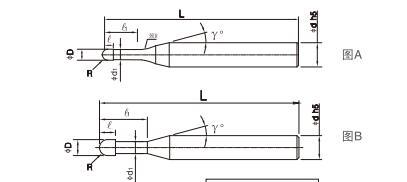

Type No. Radius Under Neck Length Length of Cut Dia. Neck Dia. Neck Taper Angle Overall Length Shank Dia.
HSXB2001L0.2 0450 R0.05 0.2 0.07 0.1 0.085 12 50 4
HSXB2001L0.3 0450 R0.05 0.3 0.07 0.1 0.085 12 50 4
HSXB2001L0.5 0450 R0.05 0.5 0.07 0.1 0.085 12 50 4
HSXB2001L0.75 0450 R0.05 0.75 0.07 0.1 0.085 12 50 4
HSXB2001L1 0450 R0.05 1 0.07 0.1 0.085 12 50 4
HSXB20015L0.3 0450 R0.075 0.3 0.1 0.15 0.13 12 50 4
HSXB20015L0.5 0450 R0.075 0.5 0.1 0.15 0.13 12 50 4
HSXB20015L0.75 0450 R0.075 0.75 0.1 0.15 0.13 12 50 4
HSXB20015L1 0450 R0.075 1 0.1 0.15 0.13 12 50 4
HSXB20015L1.5 0450 R0.075 1.5 0.1 0.15 0.13 12 50 4
HSXB2002L0.3 0450 R0.1 0.3 0.15 0.2 0.18 12 50 4
HSXB2002L0.5 0450 R0.1 0.5 0.15 0.2 0.18 12 50 4
HSXB2002L0.75 0450 R0.1 0.75 0.15 0.2 0.18 12 50 4
HSXB2002L1 0450 R0.1 1 0.15 0.2 0.18 12 50 4
HSXB2002L1.25 0450 R0.1 1.25 0.15 0.2 0.18 12 50 4
HSXB2002L1.5 0450 R0.1 1.5 0.15 0.2 0.18 12 50 4
HSXB2002L1.75 0450 R0.1 1.75 0.15 0.2 0.18 12 50 4
HSXB2002L2 0450 R0.1 2 0.15 0.2 0.18 12 50 4
HSXB2002L2.5 0450 R0.1 2.5 0.15 0.2 0.18 12 50 4
HSXB2002L3 0450 R0.1 3 0.15 0.2 0.18 12 50 4
HSXB2003L0.5 0450 R0.15 0.5 0.2 0.3 0.28 12 50 4
HSXB2003L0.6 0450 R0.15 0.6 0.2 0.3 0.28 12 50 4
HSXB2003L0.75 0450 R0.15 0.75 0.2 0.3 0.28 12 50 4
HSXB2003L1 0450 R0.15 1 0.2 0.3 0.28 12 50 4
HSXB2003L1.25 0450 R0.15 1.25 0.2 0.3 0.28 12 50 4
HSXB2003L1.5 0450 R0.15 1.5 0.2 0.3 0.28 12 50 4
HSXB2003L1.75 0450 R0.15 1.75 0.2 0.3 0.28 12 50 4
HSXB2003L2 0450 R0.15 2 0.2 0.3 0.28 12 50 4
HSXB2003L2.25 0450 R0.15 2.25 0.2 0.3 0.28 12 50 4
HSXB2003L2.5 0450 R0.15 2.5 0.2 0.3 0.28 12 50 4
HSXB2003L3 0450 R0.15 3 0.2 0.3 0.28 12 50 4
HSXB2003L3.5 0450 R0.15 3.5 0.2 0.3 0.28 12 50 4
HSXB2003L4 0450 R0.15 4 0.2 0.3 0.28 12 50 4
HSXB2004L0.5 0450 R0.2 0.5 0.3 0.4 0.37 12 50 4
HSXB2004L0.8 0450 R0.2 0.8 0.3 0.4 0.37 12 50 4
HSXB2004L1 0450 R0.2 1 0.3 0.4 0.37 12 50 4
HSXB2004L1.5 0450 R0.2 1.5 0.3 0.4 0.37 12 50 4
HSXB2004L2 0450 R0.2 2 0.3 0.4 0.37 12 50 4
HSXB2004L2.5 0450 R0.2 2.5 0.3 0.4 0.37 12 50 4
HSXB2004L3 0450 R0.2 3 0.3 0.4 0.37 12 50 4
HSXB2004L3.5 0450 R0.2 3.5 0.3 0.4 0.37 12 50 4
HSXB2004L4 0450 R0.2 4 0.3 0.4 0.37 12 50 4
HSXB2004L4.5 0450 R0.2 4.5 0.3 0.4 0.37 12 50 4
HSXB2004L5 0450 R0.2 5 0.3 0.4 0.37 12 50 4
HSXB2004L6 0450 R0.2 6 0.3 0.4 0.37 12 50 4
HSXB2004L8 0450 R0.2 8 0.3 0.4 0.37 12 50 4
HSXB2005L1 0450 R0.25 1 0.35 0.5 0.46 12 50 4
HSXB2005L1.5 0450 R0.25 1.5 0.35 0.5 0.46 12 50 4
HSXB2005L2 0450 R0.25 2 0.35 0.5 0.46 12 50 4
HSXB2005L2.5 0450 R0.25 2.5 0.35 0.5 0.46 12 50 4
HSXB2005L3 0450 R0.25 3 0.35 0.5 0.46 12 50 4
HSXB2005L3.5 0450 R0.25 3.5 0.35 0.5 0.46 12 50 4
HSXB2005L4 0450 R0.25 4 0.35 0.5 0.46 12 50 4
HSXB2005L4.5 0450 R0.25 4.5 0.35 0.5 0.46 12 50 4
HSXB2005L5 0450 R0.25 5 0.35 0.5 0.46 12 50 4
HSXB2005L5.5 0450 R0.25 5.5 0.35 0.5 0.46 12 50 4
HSXB2005L6 0450 R0.25 6 0.35 0.5 0.46 12 50 4
HSXB2005L8 0450 R0.25 8 0.35 0.5 0.46 12 50 4
HSXB2005L10 0450 R0.25 10 0.35 0.5 0.46 12 50 4
HSXB2006L1 0450 R0.3 1 0.45 0.6 0.56 12 50 4
HSXB2006L1.5 0450 R0.3 1.5 0.45 0.6 0.56 12 50 4
HSXB2006L2 0450 R0.3 2 0.45 0.6 0.56 12 50 4
HSXB2006L2.5 0450 R0.3 2.5 0.45 0.6 0.56 12 50 4
HSXB2006L3 0450 R0.3 3 0.45 0.6 0.56 12 50 4
HSXB2006L3.5 0450 R0.3 3.5 0.45 0.6 0.56 12 50 4
HSXB2006L4 0450 R0.3 4 0.45 0.6 0.56 12 50 4
HSXB2006L4.5 0450 R0.3 4.5 0.45 0.6 0.56 12 50 4
HSXB2006L5 0450 R0.3 5 0.45 0.6 0.56 12 50 4
HSXB2006L5.5 0450 R0.3 5.5 0.45 0.6 0.56 12 50 4
HSXB2006L6 0450 R0.3 6 0.45 0.6 0.56 12 50 4
HSXB2006L7 0450 R0.3 7 0.45 0.6 0.56 12 50 4
HSXB2006L8 0450 R0.3 8 0.45 0.6 0.56 12 50 4
HSXB2006L9 0450 R0.3 9 0.45 0.6 0.56 12 50 4
HSXB2006L10 0450 R0.3 10 0.45 0.6 0.56 12 50 4
HSXB2006L12 0450 R0.3 12 0.45 0.6 0.56 12 50 4
HSXB2007L2 0450 R0.35 2 0.5 0.7 0.66 12 50 4
HSXB2007L3 0450 R0.35 3 0.5 0.7 0.66 12 50 4
HSXB2007L4 0450 R0.35 4 0.5 0.7 0.66 12 50 4
HSXB2007L6 0450 R0.35 6 0.5 0.7 0.66 12 50 4
HSXB2007L8 0450 R0.35 8 0.5 0.7 0.66 12 50 4
HSXB2008L2 0450 R0.4 2 0.6 0.8 0.76 12 50 4
HSXB2008L2.5 0450 R0.4 2.5 0.6 0.8 0.76 12 50 4
HSXB2008L3 0450 R0.4 3 0.6 0.8 0.76 12 50 4
HSXB2008L4 0450 R0.4 4 0.6 0.8 0.76 12 50 4
HSXB2008L5 0450 R0.4 5 0.6 0.8 0.76 12 50 4
HSXB2008L6 0450 R0.4 6 0.6 0.8 0.76 12 50 4
HSXB2008L7 0450 R0.4 7 0.6 0.8 0.76 12 50 4
HSXB2008L8 0450 R0.4 8 0.6 0.8 0.76 12 50 4
HSXB2008L10 0450 R0.4 10 0.6 0.8 0.76 12 50 4
HSXB2008L12 0450 R0.4 12 0.6 0.8 0.76 12 50 4
HSXB2008L16 0450 R0.4 16 0.6 0.8 0.76 12 50 4
HSXB2009L2 0450 R0.45 2 0.65 0.9 0.86 12 50 4
HSXB2009L4 0450 R0.45 4 0.65 0.9 0.86 12 50 4
HSXB2009L6 0450 R0.45 6 0.65 0.9 0.86 12 50 4
HSXB2009L8 0450 R0.45 8 0.65 0.9 0.86 12 50 4
HSXB2010L2.5 0450 R0.5 2.5 0.75 1 0.95 12 50 4
HSXB2010L3 0450 R0.5 3 0.75 1 0.95 12 50 4
HSXB2010L4 0450 R0.5 4 0.75 1 0.95 12 50 4
HSXB2010L4 0660 R0.5 4 0.75 1 0.95 12 60 6
HSXB2010L5 0450 R0.5 5 0.75 1 0.95 12 50 4
HSXB2010L6 0450 R0.5 6 0.75 1 0.95 12 50 4
HSXB2010L6 0660 R0.5 6 0.75 1 0.95 12 60 6
HSXB2010L7 0450 R0.5 7 0.75 1 0.95 12 50 4
HSXB2010L8 0450 R0.5 8 0.75 1 0.95 12 50 4
HSXB2010L8 0660 R0.5 8 0.75 1 0.95 12 60 6
HSXB2010L9 0450 R0.5 9 0.75 1 0.95 12 50 4
HSXB2010L10 0450 R0.5 10 0.75 1 0.95 12 50 4
HSXB2010L10 0660 R0.5 10 0.75 1 0.95 12 60 6
HSXB2010L12 0450 R0.5 12 0.75 1 0.95 12 50 4
HSXB2010L14 0450 R0.5 14 0.75 1 0.95 12 50 4
HSXB2010L16 0450 R0.5 16 0.75 1 0.95 12 50 4
HSXB2010L18 0460 R0.5 18 0.75 1 0.95 12 60 4
HSXB2010L20 0460 R0.5 20 0.75 1 0.95 12 60 4
HSXB2010L22 0460 R0.5 22 0.75 1 0.95 12 60 4
HSXB2012L4 0450 R0.6 4 1 1.2 1.14 11 50 4
HSXB2012L6 0450 R0.6 6 1 1.2 1.14 11 50 4
HSXB2012L8 0450 R0.6 8 1 1.2 1.14 11 50 4
HSXB2012L10 0450 R0.6 10 1 1.2 1.14 11 50 4
HSXB2012L12 0450 R0.6 12 1 1.2 1.14 11 50 4
HSXB2012L14 0450 R0.6 14 1 1.2 1.14 11 50 4
HSXB2014L8 0450 R0.7 8 1.1 1.4 1.34 11 50 4
HSXB2014L12 0450 R0.7 12 1.1 1.4 1.34 11 50 4
HSXB2014L16 0450 R0.7 16 1.1 1.4 1.34 11 50 4
HSXB2015L4 0450 R0.75 4 1.2 1.5 1.42 11 50 4
HSXB2015L6 0450 R0.75 6 1.2 1.5 1.42 11 50 4
HSXB2015L6 0660 R0.75 6 1.2 1.5 1.42 11 60 6
HSXB2015L8 0450 R0.75 8 1.2 1.5 1.42 11 50 4
HSXB2015L8 0660 R0.75 8 1.2 1.5 1.42 11 60 6
HSXB2015L10 0450 R0.75 10 1.2 1.5 1.42 11 50 4
HSXB2015L10 0660 R0.75 10 1.2 1.5 1.42 11 60 6
HSXB2015L12 0450 R0.75 12 1.2 1.5 1.42 11 50 4
HSXB2015L12 0660 R0.75 12 1.2 1.5 1.42 11 60 6
HSXB2015L14 0450 R0.75 14 1.2 1.5 1.42 11 50 4
HSXB2015L16 0450 R0.75 16 1.2 1.5 1.42 11 50 4
HSXB2015L18 0460 R0.75 18 1.2 1.5 1.42 11 60 4
HSXB2015L20 0460 R0.75 20 1.2 1.5 1.42 11 60 4
HSXB2015L25 0460 R0.75 25 1.2 1.5 1.42 11 60 4
HSXB2015L30 0475 R0.75 30 1.2 1.5 1.42 11 75 4
HSXB2016L8 0450 R0.8 8 1.3 1.6 1.52 11 50 4
HSXB2016L12 0450 R0.8 12 1.3 1.6 1.52 11 50 4
HSXB2016L16 0450 R0.8 16 1.3 1.6 1.52 11 50 4
HSXB2020L3 0450 R1 3 1.6 2 1.9 11 50 4
HSXB2020L4 0450 R1 4 1.6 2 1.9 11 50 4
HSXB2020L6 0450 R1 6 1.6 2 1.9 11 50 4
HSXB2020L8 0450 R1 8 1.6 2 1.9 11 50 4
HSXB2020L8 0660 R1 8 1.6 2 1.9 11 60 6
HSXB2020L10 0450 R1 10 1.6 2 1.9 11 50 4
HSXB2020L10 0660 R1 10 1.6 2 1.9 11 60 6
HSXB2020L12 0450 R1 12 1.6 2 1.9 11 50 4
HSXB2020L12 0660 R1 12 1.6 2 1.9 11 60 6
HSXB2020L14 0450 R1 14 1.6 2 1.9 11 50 4
HSXB2020L16 0450 R1 16 1.6 2 1.9 11 50 4
HSXB2020L16 0660 R1 16 1.6 2 1.9 11 60 6
HSXB2020L18 0460 R1 18 1.6 2 1.9 11 60 4
HSXB2020L20 0460 R1 20 1.6 2 1.9 11 60 4
HSXB2020L22 0459 R0 22 1.6 2 1.9 11 60 4
HSXB2020L25 0460 R1 25 1.6 2 1.9 11 60 4
HSXB2020L30 0475 R1 30 1.6 2 1.9 11 75 4
HSXB2020L35 0475 R1 35 1.6 2 1.9 11 75 4
HSXB2025L6 0450 R1.25 6 2 2.5 2.4 11 50 4
HSXB2025L8 0450 R1.25 8 2 2.5 2.4 11 50 4
HSXB2025L10 0450 R1.25 10 2 2.5 2.4 11 50 4
HSXB2025L12 0450 R1.25 12 2 2.5 2.4 11 50 4
HSXB2025L16 0450 R1.25 16 2 2.5 2.4 11 50 4
HSXB2025L20 0460 R1.25 20 2 2.5 2.4 11 60 4
HSXB2025L25 0460 R1.25 25 2 2.5 2.4 11 60 4
HSXB2025L30 0475 R1.25 30 2 2.5 2.4 11 75 4
HSXB2025L35 0475 R1.25 35 2 2.5 2.4 11 75 4
HSXB2030L8 0450 R1.5 8 2.4 3 2.9 11 50 4
HSXB2030L8 0660 R1.6 8 2.4 3 2.9 11 60 6
HSXB2030L10 0450 R1.5 10 2.4 3 2.9 11 50 4
HSXB2030L10 0660 R1.5 10 2.4 3 2.9 11 60 6
HSXB2030L12 0450 R1.5 12 2.4 3 2.9 11 50 4
HSXB2030L12 0660 R1.5 12 2.4 3 2.9 11 60 6
HSXB2030L14 0450 R1.5 14 2.4 3 2.9 11 50 4
HSXB2030L14 0660 R1.5 14 2.4 3 2.9 11 60 6
HSXB2030L16 0450 R1.5 16 2.4 3 2.9 11 50 4
HSXB2030L16 0660 R1.5 16 2.4 3 2.9 11 60 6
HSXB2030L20 0660 R1.5 20 2.4 3 2.9 11 60 6
HSXB2030L25 0675 R1.5 25 2.4 3 2.9 11 75 6
HSXB2030L30 0675 R1.5 30 2.4 3 2.9 11 75 6
HSXB2030L35 0675 R1.5 35 2.4 3 2.9 11 75 6
HSXB2030L40 06100 R1.5 40 2.4 3 2.9 11 100 6
HSXB2035L16 0660 R1.75 16 2.8 3.5 3.4 11 60 6
HSXB2035L20 0660 R1.75 20 2.8 3.5 3.4 11 60 6
HSXB2035L25 0675 R1.75 25 2.8 3.5 3.4 11 75 6
HSXB2035L30 0675 R1.75 30 2.8 3.5 3.4 11 75 6
HSXB2035L35 0675 R1.75 35 2.8 3.5 3.4 11 75 6
HSXB2035L40 06100 R1.75 40 2.8 3.5 3.4 11 100 6
HSXB2035L45 06100 R1.75 45 2.8 3.5 3.4 11 100 6
HSXB2040L10 0450 R2 10 3.2 4 3.9 11 50 4
HSXB2040L10 0660 R2 10 3.2 4 3.9 11 60 6
HSXB2040L12 0660 R2 12 3.2 4 3.9 11 60 6
HSXB2040L14 0660 R2 14 3.2 4 3.9 11 60 6
HSXB2040L16 0660 R2 16 3.2 4 3.9 11 60 6
HSXB2040L20 0660 R2 20 3.2 4 3.9 11 60 6
HSXB2040L25 0675 R2 25 3.2 4 3.9 11 75 6
HSXB2040L30 0675 R2 30 3.2 4 3.9 11 75 6
HSXB2040L35 0675 R2 35 3.2 4 3.9 11 75 6
HSXB2040L40 06100 R2 40 3.2 4 3.9 11 100 6
HSXB2040L45 06100 R2 45 3.2 4 3.9 11 100 6
HSXB2040L50 06100 R2 50 3.2 4 3.9 11 100 6
HSXB2050L16 0660 R2.5 16 4 5 4.85 11 60 6
HSXB2050L20 0660 R2.5 20 4 5 4.85 11 60 6
HSXB2050L25 0675 R2.5 25 4 5 4.85 11 75 6
HSXB2050L30 0675 R2.5 30 4 5 4.85 11 75 6
HSXB2050L35 0675 R2.5 35 4 5 4.85 11 75 6
HSXB2050L40 06100 R2.5 40 4 5 4.85 11 100 6
HSXB2050L45 06100 R2.5 45 4 5 4.85 11 100 6
HSXB2050L50 06100 R2.5 50 4 5 4.85 11 100 6
HSXB2060L12 0660 R3 12 4.8 6 5.85 11 60 6
HSXB2060L20 0675 R3 20 4.8 6 5.85 11 75 6
HSXB2060L30 0675 R3 30 4.8 6 5.85 11 75 6

HGXB 2-Flute Ball End Mill

HGXB 2-Flute Ball End Mill

HGXE 2-Flute End Mill

HGXE 2-Flute End Mill

HGXE 4-Flute End Mill

HGXE 4-Flute End Mill

Online message

Got a question about SGSO? Interested in our products? We may give you sample products.Have some suggestions? Send us a message:

Submit
logo

SGSO Technology Europe GmbH

Address:  Europark Fichtenhain A13a, 47807 Krefeld, Germany

E-mail:  info@sgso-europe.com

Tax ID (Ust-idNr.):  DE 449662804

Commercial Register:  HRB 20703 Jurisdiction Krefeld / Germany



linkin
youtube

A Member of

图片名称

RIJIN Group

CONTACT

Submit
；

Copyright©2024 SGSO Technology Europe GmbH

powered by www.300.cn

Business License

GTC( AGB)  |  Imprint (Impressum) |  Privacy Policy (Datenschutz)

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.
