HGXEF 4-Flute End Mill-45°
1、0.3um ultra fine particles, makes it have both to-ughness and hardness, high speed and long time cutting could be true.
2、The super lubrication of ATX coating surface,makes the friction coefficient of the coating surface lower,cutting resistance and cutting temperature will be greatly reduced;
3、ATX coating is very suitable for cutting the materials of HRC40-55,widely used to the processing of high-precision moulds such as car lamp moulds, mobile phone moulds and hardware moulds, etc.
Key words: tool
Classification:
Product Details

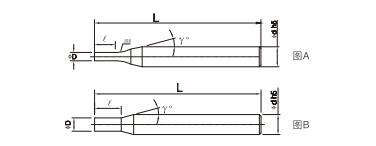

| Type No. | Dia. | Length of Cut | Nack Taper Angle | Overall Length | Shank Dia. |
| HGXEF4010 0450 | 1 | 3 | 12 | 50 | 4 |
| HGXEF4010 0650 | 1 | 3 | 12 | 50 | 6 |
| HGXEF4012 0450 | 1.2 | 3.5 | 11 | 50 | 4 |
| HGXEF4014 0450 | 1.4 | 4 | 11 | 50 | 4 |
| HGXEF4015 0450 | 1.5 | 4 | 11 | 50 | 4 |
| HGXEF4015 0650 | 1.5 | 4 | 11 | 50 | 6 |
| HGXEF4016 0450 | 1.6 | 5 | 11 | 50 | 4 |
| HGXEF4020 0450 | 2 | 6 | 11 | 50 | 4 |
| HGXEF4020 0650 | 2 | 6 | 11 | 50 | 6 |
| HGXEF4025 0450 | 2.5 | 8 | 11 | 50 | 4 |
| HGXEF4025 0650 | 2.5 | 8 | 11 | 50 | 6 |
| HGXEF4030 0450 | 3 | 8 | 11 | 50 | 4 |
| HGXEF4030 0650 | 3 | 8 | 11 | 50 | 6 |
| HGXEF4030 0660 | 3 | 8 | 11 | 60 | 6 |
| HGXEF4030 0675 | 3 | 12 | 11 | 75 | 6 |
| HGXEF4040 0450 | 4 | 11 | - | 50 | 4 |
| HGXEF4040 0475 | 4 | 15 | - | 75 | 4 |
| HGXEF4040 0650 | 4 | 11 | 11 | 50 | 6 |
| HGXEF4040 0660 | 4 | 11 | 11 | 60 | 6 |
| HGXEF4040 0675 | 4 | 15 | 11 | 75 | 6 |
| HGXEF4050 0650 | 5 | 13 | 11 | 50 | 6 |
| HGXEF4050 0660 | 5 | 13 | 11 | 60 | 6 |
| HGXEF4050 0675 | 5 | 18 | 11 | 75 | 6 |
| HGXEF4060 0650 | 6 | 16 | - | 50 | 6 |
| HGXEF4060 0660 | 6 | 16 | - | 60 | 6 |
| HGXEF4060 0675 | 6 | 20 | - | 75 | 6 |
| HGXEF4060 06100 | 6 | 20 | - | 100 | 6 |
| HGXEF4080 0860 | 8 | 20 | - | 60 | 8 |
| HGXEF4080 0875 | 8 | 20 | - | 75 | 8 |
| HGXEF4080 08100 | 8 | 25 | - | 100 | 8 |
| HGXEF4080 08125 | 8 | 28 | - | 125 | 8 |
| HGXEF4080 08150 | 8 | 28 | - | 150 | 8 |
| HGXEF4100 1075 | 10 | 25 | - | 75 | 10 |
| HGXEF4100 10100 | 10 | 30 | - | 100 | 10 |
| HGXEF4100 10125 | 10 | 35 | - | 125 | 10 |
| HGXEF4100 10150 | 10 | 35 | - | 150 | 10 |
| HGXEF4120 1275 | 12 | 30 | - | 75 | 12 |
| HGXEF4120 12100 | 12 | 35 | - | 100 | 12 |
| HGXEF4120 12125 | 12 | 42 | - | 125 | 12 |
| HGXEF4120 12150 | 12 | 42 | - | 150 | 12 |
| HGXEF4140 1475 | 14 | 32 | - | 75 | 14 |
| HGXEF4140 14100 | 14 | 40 | - | 100 | 14 |
| HGXEF4160 16100 | 16 | 45 | - | 100 | 16 |
| HGXEF4160 16150 | 16 | 50 | - | 150 | 16 |
| HGXEF4200 20100 | 20 | 45 | - | 100 | 20 |
| HGXEF4200 20125 | 20 | 50 | - | 125 | 20 |
| HGXEF4200 20150 | 20 | 55 | - | 150 | 20 |
