HSXDT

Key words: tool

Classification:

HSXDT

Online message

Product Details

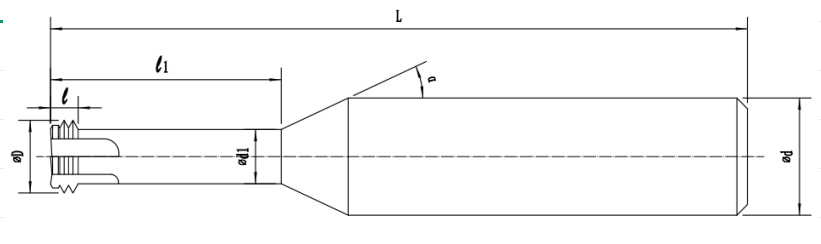

Type No.			Dia.	Pitch	Length of Cut	Under Neck Length	Neck Dia.	Overall Length	Shank Dia.
Type No.	Regular Thread	Z	D	Pitch	ℓ	ℓ1	d1	L	d	α	h	b	β	Inner coolant
HSXDT-0.4-5 0650	M2	4	1.4	0.4	1.2	5	0.91	50	6	25°	0.062	0.117	28°
HSXDT-0.45-6.25 0650	M2.5	4	1.8	0.45	1.35	6.25	1.24	50	6	25°	0.089	0.168	28°
HSXDT-0.5-7.5 0650	M3	4	2.4	0.5	1.5	7.5	1.78	50	6	25°	0.133	0.250	28°
HSXDT-0.7-10 0650	M4	4	3.1	0.7	2.1	10	2.24	50	6	25°	0.162	0.306	28°
HSXDT-0.8-12.5 0650	M5	4	3.8	0.8	2.4	12.5	2.80	50	6	25°	0.209	0.394	28°
HSXDT-1.0-15 0650	M6	4	4.6	1	3	15	3.36	50	6	25°	0.247	0.465	28°
HSXDT-1.25-20 1075	M8	4	6.2	1.25	3.75	20	4.64	75	10	25°	0.346	0.652	28°
HSXDT-0.75-20 1075	*	4	6.2	0.75	2.25	20	5.16	75	10	25°	0.222	0.417	28°
HSXDT-1.5-25 1075	M10	4	7.5	1.5	4.50	25	5.61	75	10	25°	0.422	0.794	28°	*
HSXDT-1.0-25 1075	*	4	7.5	1	3	25	6.11	75	10	25°	0.313	0.590	28°	*
HSXDT-1.75-30 1075	M12	4	9.0	1.75	5.25	30	6.78	75	10	25°	0.514	0.967	28°	*
HSXDT-2-40 12100	M16	4	11.5	2	6	40	8.87	100	12	25°	0.690	1.299	28°	*
HSXDT-2.5-50 16125	M20	4	15	2.5	7.5	51	11.71	125	16	20°	0.916	1.724	28°	*
